| ชื่อแบรนด์: | Lei Kan |
| หมายเลขรุ่น: | LKXR-RD111 |
Ⅰ. Product Overview:
LKXR-RD111 series employs X-band solid-state phased-array technology with AI-enhanced pulse-Doppler processing, engineered for long-range detection of “low-slow-small” targets. Three mechanical options—single panel, single panel with turntable, or four-panel array—cover fixed-site, mobile, and wide-area networking applications. A 0.01 m² drone is tracked beyond 10 km.
Ⅱ. Product Features
• Solid-state: no rotary joints, MTBF ≥20 000 h
• 10 km reach: 30 % longer than comparable radars
• 0.4° precision: azimuth & elevation lock
• AI fast ID: target type & track in ≤0.5 s
• Plug-and-play: three mounting styles, 15 min setup
• Wide climate: -40 °C to +60 °C, all-weather
Ⅲ. Qualification
|
Parameter |
111A |
111B |
111C |
|
Frequency |
X-band |
X-band |
X-band |
|
Installation |
Single panel |

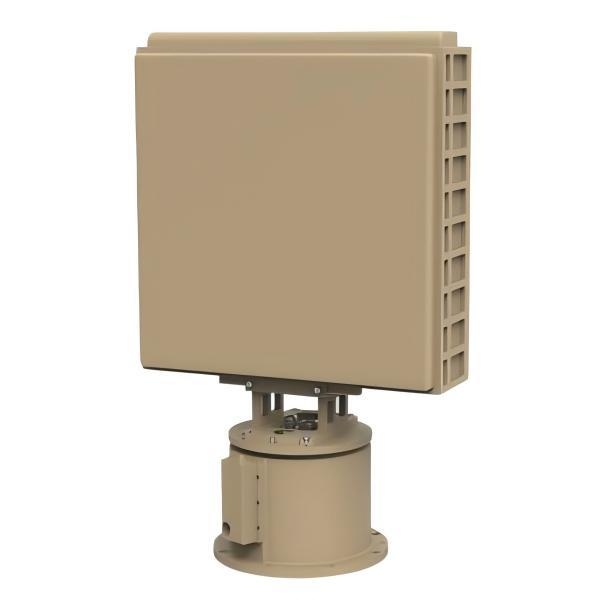

Single panel + turntable |
4-panel array |
|
Detection range (0.01 m²) |
≥10 km |
||
|
Blind zone |
≤200 m |
||
|
Azimuth coverage |
±45° |
360° |
360° |
|
Elevation coverage |
0°–30° (configurable) |
||
|
Velocity range |
1 m/s – 100 m/s |
||
|
Range accuracy |
<10 m |
||
|
Azimuth accuracy |
<0.4° |
||
|
Elevation accuracy |
<0.4° |
||
|
Search update |
≤4 s |
||
|
TAS update |
≤0.5 s |
||
|
Interface |
Gigabit Ethernet |
||
|
Weight |
≤25 kg |
≤40 kg |
≤120 kg |
|
Power supply |
AC 220 V / DC 28 V |
||
|
Power consumption |
≤1200 W |
≤1300 W |
≤5000 W |
|
Dimensions (mm) |
520×330×200 |
770×330×250 |
1200×1200×650 |
|
Operating temperature |
-40 °C to +60 °C |
||
Ⅳ. Selling Points
1. “See 10 km in one glance”
2. LEGO-style deployment—one person, 15 minutes
3. 0.4° laser-grade cueing—direct EO/jammer cue
4. Dual power—AC 220 V or DC 28 V field ready
5. Zero maintenance—solid-state design
