| ชื่อแบรนด์: | Lei Kan |
| หมายเลขรุ่น: | LKXR-XD120 |
Ⅰ. Overview

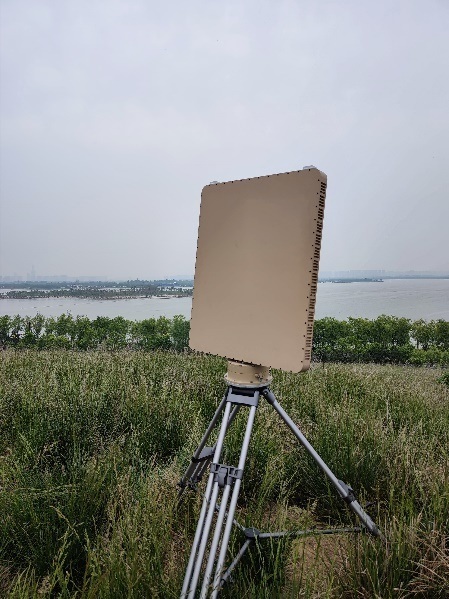

Low altitude surveillance radar is mainly used for low altitude and ground surveillance. The radar adopts digital beamforming technology, with low equivalent omnidirectional radiation power and high search data rate. The radar adopts adaptive clutter suppression technology and dense target detection pre tracking technology, with extremely low clutter false alarm rate. It can automatically track and build navigation for more than 500 batches of targets and output high-precision position information.
Ⅱ. Highlights
1. High precision;
2. Wide coverage;
3. Target discovery and tracking;
4. Digital beamforming system with high search data rate;
5. Wide detection speed range;
6. Excellent ability to suppress clutter false alarms.
7. Large airspace coverage, azimuth coverage range of 360 °, elevation coverage range>60 °;
8. Capable of indicating the coordinates and velocity information of active targets within the scanning range of the radar;
9. Capable of automatically indicating the target's motion trajectory;
10. Equipped with automatic clutter filtering function, it does not establish effective trajectories for ground clutter, water clutter, and meteorological clutter;
11. Capable of data recording and playback.
Ⅲ. Specifications
|
Parameter |
Value |
|
Frequency band |
X-band 9.8–10 GHz |
|
Elevation / Azimuth |
–3°–60° / 0–360° |
|
Detection range |
≥10 km (quadcopter 0.01 m²) |
|
|
≥20 km (medium fixed-wing 1 m²) |
|
Max altitude |
≥3 000 m |
|
Blind zone |
≤50 m |
|
Range/Angle accuracy |
≤5 m (RMS) / ≤0.3° (RMS) |
|
Simultaneous tracks |
≥500 |
|
Tracking speed |
1–150 m/s |
|
Antenna rotation |
30 rpm (upgradeable 60 rpm) |
|
Data interface |
Gigabit Ethernet UDP |
|
Environmental |
–40 °C to +55 °C |
|
Power consumption |
≤400 W |
|
Weight |
≤55 kg |
|
Dimensions |
650 × 815 × 93 mm |
|
Transmit power |
≤50 W |
