| ชื่อแบรนด์: | Lei Kan |
| หมายเลขรุ่น: | LKXR-XD115 |
Ⅰ. Product Overview

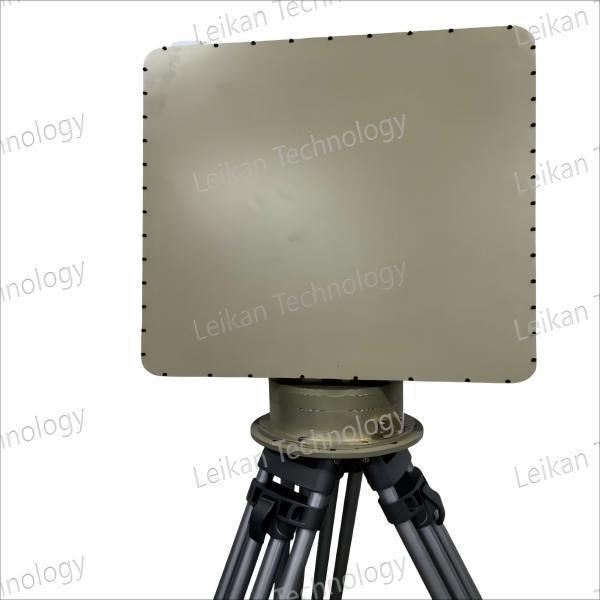

The LKXR-XD115 is an X-band, all solid state, digital beamforming (DBF) low altitude surveillance radar. A single station provides 360 ° × 60 ° airspace coverage and can simultaneously establish ≥ 300 batches of target trajectories, suitable for continuous detection and tracking of drones, personnel, vehicles, and sea targets
Ⅱ. Product Features
1. Digital beamforming: high search data rate, fast refresh rate
2. Adaptive clutter suppression: extremely low false alarm rate under rain, snow, and ground clutter
3. Pitch -3 °~+60 °: suitable for mountainous and high-rise scenes
4. Built in recording and playback: supports post event data analysis
5. Lightweight and low-power consumption: ≤ 35 kg, ≤ 330 W, can be deployed in vehicles or portable devices
Ⅲ. Specifications
| Parameter Name | Parameter Value |
| Operating Frequency | X-band 9.8–10 GHz |
| Elevation Coverage | −3°–60° |
| Azimuth Coverage | 360° |
| Detection Range |
Small quadcopter (RCS 0.01 m²) ≥ 8 km Small fixed-wing UAV (RCS 0.1 m²) ≥ 12 km Medium fixed-wing UAV (RCS 1 m²) ≥ 15 km Personnel ≥ 14 km• Helicopter / vehicle ≥ 15 km |
| Maximum Detection Altitude | ≥ 2 000 m |
| Blind Zone | ≤ 50 m |
| Range Accuracy | ≤ 5 m (RMS) |
| Angular Accuracy | Azimuth ≤ 0.4° (RMS) / Elevation ≤ 0.4° (RMS) |
| Antenna Rotation Speed | 30 rpm (180°/s) upgradeable to 60 rpm (360°/s) |
| Simultaneous Tracks | ≥ 300 |
| Tracking Speed Range | 1–150 m/s |
| Clutter Rejection | Immune to common clutter |
| Operating Temperature | −40 °C to +55 °C |
| Humidity | ≤ 60 % |
| Protection Level | IP65 (main unit IP67) |
| Weight | ≤ 35 kg |
| Power Consumption | ≤ 330 W |
| Array Dimensions | 540 × 675 × 85 mm |
| Resolution | 4° (azimuth) / 7° (elevation) |
| Transmit Power | ≤ 30 W |
Ⅳ. Product selling points
1. Multi class target long-range detection
- Rotorcraft drone ≥ 8 km
- Personnel ≥ 14 km
- Vehicles/helicopters ≥ 15 km
2. Track the number of target batches
300 batches of real-time tracks, positioning accuracy ≤ 5 m, ≤ 0.4 °
3. Ready to use
Complex terrain does not require additional clutter debugging
4. Upgrade option
The antenna speed can be soft upgraded to 60 rpm
